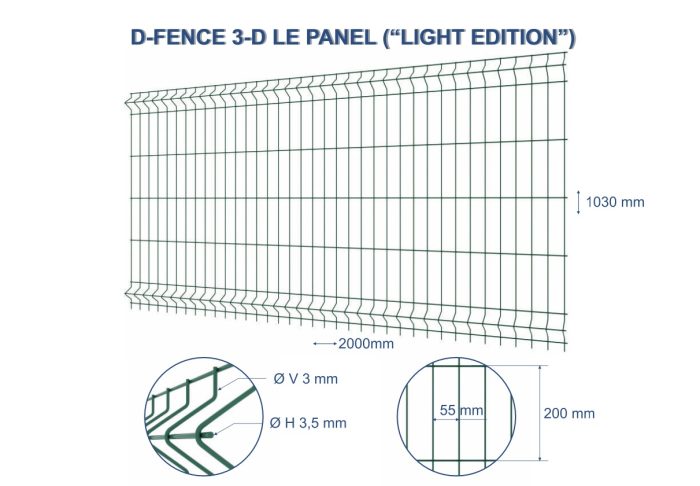

D-FENCE 3-D LE PANEL („LIGHT EDITION”)
COLOURS
Standard RAL colours: | 6005 | 7016 | 7030 | 7040 | 3004 | 9005 |
 |  |  |  |  |  |
COATING TECHNIQUE
Coating wire Zn / ZnAL + PES
Aprašymas
CHARACTERISTICS
Marking | Rods diameter | Rods number horizontally, pcs | Fence width, mm | Fence height, mm | Mesh size | Ribs number | Bars number, pcs | ||||
| H (horizontally) | V (vertically) | Mesh size | vertically | horizontally | horizontally, pcs | vertically, pcs | |||||
H3,5 V3 | 3,5 | 3 | 1 | 2000 | 630 | 200×55 | 200 | 55 | 2 | 7 | 37 |
| 3,5 | 3 | 1 | 2000 | 1030 | 200 | 55 | 2 | 9 | 37 | ||
| 3,5 | 3 | 1 | 2500 | 1230 | 200 | 55 | 2 | 10 | 46 | ||
| 3,5 | 3 | 1 | 2500 | 1530 | 200 | 55 | 3 | 11 | 46 | ||
| 3,5 | 3 | 1 | 2500 | 1930 | 200 | 55 | 3 | 15 | 46 | ||
| 3,5 | 3 | 1 | 2500 | 2030 | 200 | 55 | 4 | 17 | 46 | ||
